Tornado Power
LiEB HP10 PRO, Cluster Energy System
HP10 PRO system photo
PRO ClusterLiEB · Tornado Power Group

HP10 PRO

Cluster Energy System

Flagship cluster platform for large commercial and industrial sites. 10 kW / 14.34 kWh, clustering up to 6 units (60 kW), 3-phase 400V, MPPT, EMS. Approaches 1 MWh.

Price
From 281 000 UAH
In Stock

The listed price is an indicative starting price. Final pricing depends on configuration, equipment package and delivery terms.

Rated Power
10 kW
Peak Power
20 kW
Capacity
14.34 kWh
Max Capacity
861.6 kWh
Chemistry
LiFePO₄
Voltage
48 V
Request ConsultationGet Commercial Proposal
Certified System · Made in Ukraine · Tornado Power Group

Key Specifications

Rated Power
10 kW
Peak Power
20 kW
Capacity
14.34 kWh
Max Capacity
861.6 kWh
Chemistry
LiFePO₄
Voltage
48 V
UPS Mode
< 8 ms
Scalability
× 6 одиниць + BM11 × 15
Solar (MPPT)
MPPT < 2 год
EMS
Built-in
Communication
CAN / RS485 / Modbus
Warranty
24 mo.

System Overview

Up to ~861.6 kWh (≈1 MWh): approaches industrial scale

60 kW cluster: 3-Phase 400V industrial power

Up to 15 BM11 modules per unit

Built-in EMS + UPS < 8 ms

LiEB HP10 PRO overview

Scalability

1

Single unit: 10 kW / 14.34 kWh

2

Add up to 15 BM11 modules per unit

3

Connect up to 6 units in parallel → 60 kW

4

Maximum system: ~861.6 kWh (≈1 MWh) / 60 kW / 3-Phase 400V

Scaling Architecture
Base Unit14.34 kWh
+ Modules× 6
Maximum861.6 kWh
Architecture remains unchanged

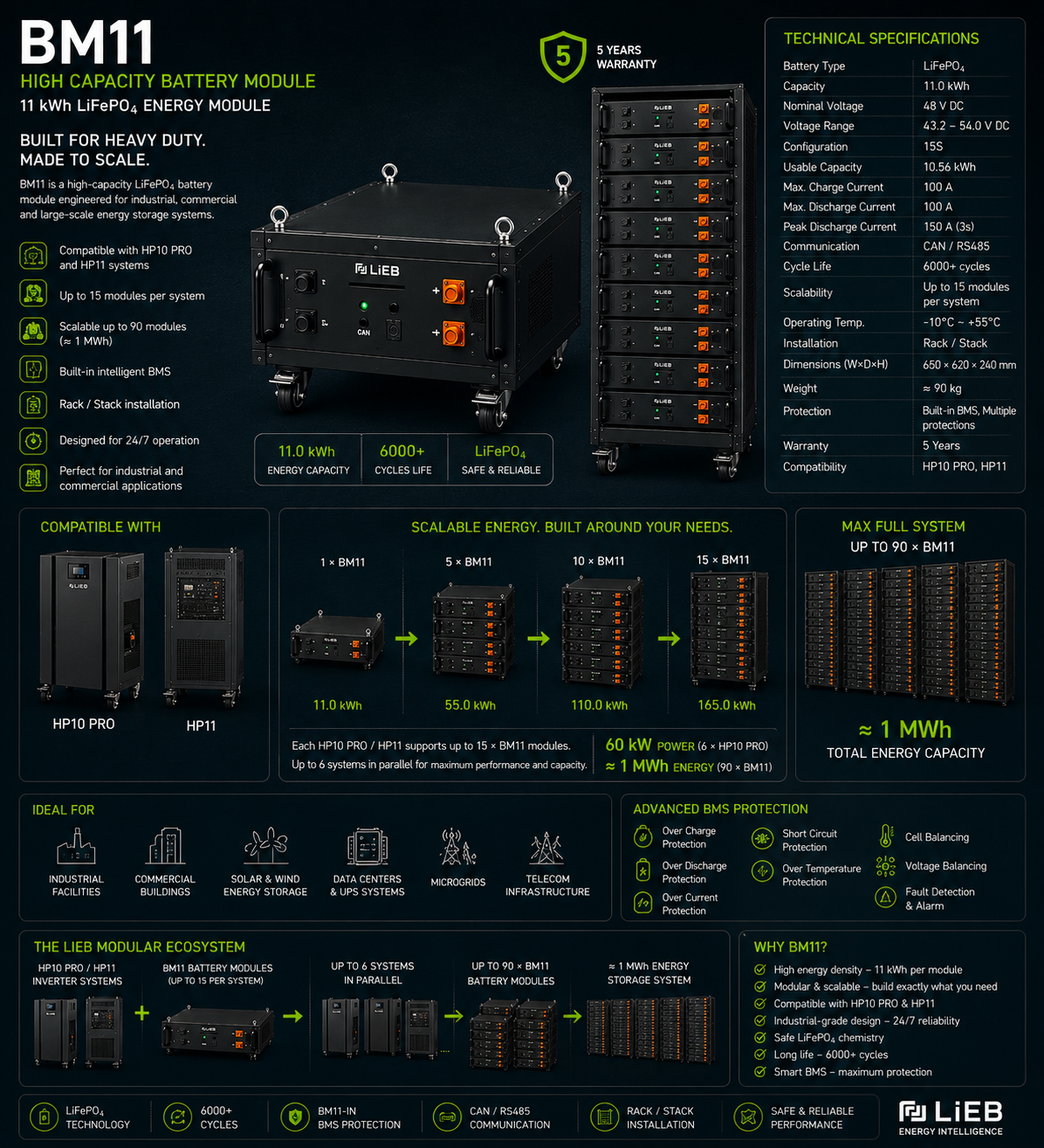

Compatible Modules

Applications

Large Commercial Sites
Industrial ESS
3-Phase Power
Cluster Architecture
Data Centers
Microgrid

Technical Specifications

SKU: LIEB-HP10PRO
Battery Capacity14 336 Вт·г (14,34 кВт·г)
Bus Voltage48 В / 48 V
Cell ChemistryLiFePO₄ (LFP)
Rated Power10 000 Вт / 10,000 W
Peak Power20 000 Вт / 20,000 W
UPS Switchover< 8 мс / < 8 ms
Parallel Stackingдо 6 одиниць / up to 6 units
Max Cluster Power60 000 Вт (60 кВт)
3-Phase (400 V)Так / Yes
Max BM11 Modules per Unit15
Max System Capacity861 600 Вт·г (861,6 кВт·г ≈ 1 МВт·г)
MPPT Solar Charge< 2 год / < 2 h
EMSВбудована / Built-in
CommunicationCAN / RS485 / Modbus
Warranty24 міс. / 24 mo.

Documentation

Datasheet
·
Solution Brochure
·
Full Specifications
·
LiEB Engineering Team

Need help choosing a configuration?

Our engineers will calculate the optimal configuration for your site, provide technical documentation and a commercial proposal.

Request ConsultationCalculate System Configuration
