Tornado Power
LiEB HP5 PRO, Cluster Energy System
HP5 PRO system photo
PRO ClusterLiEB · Tornado Power Group

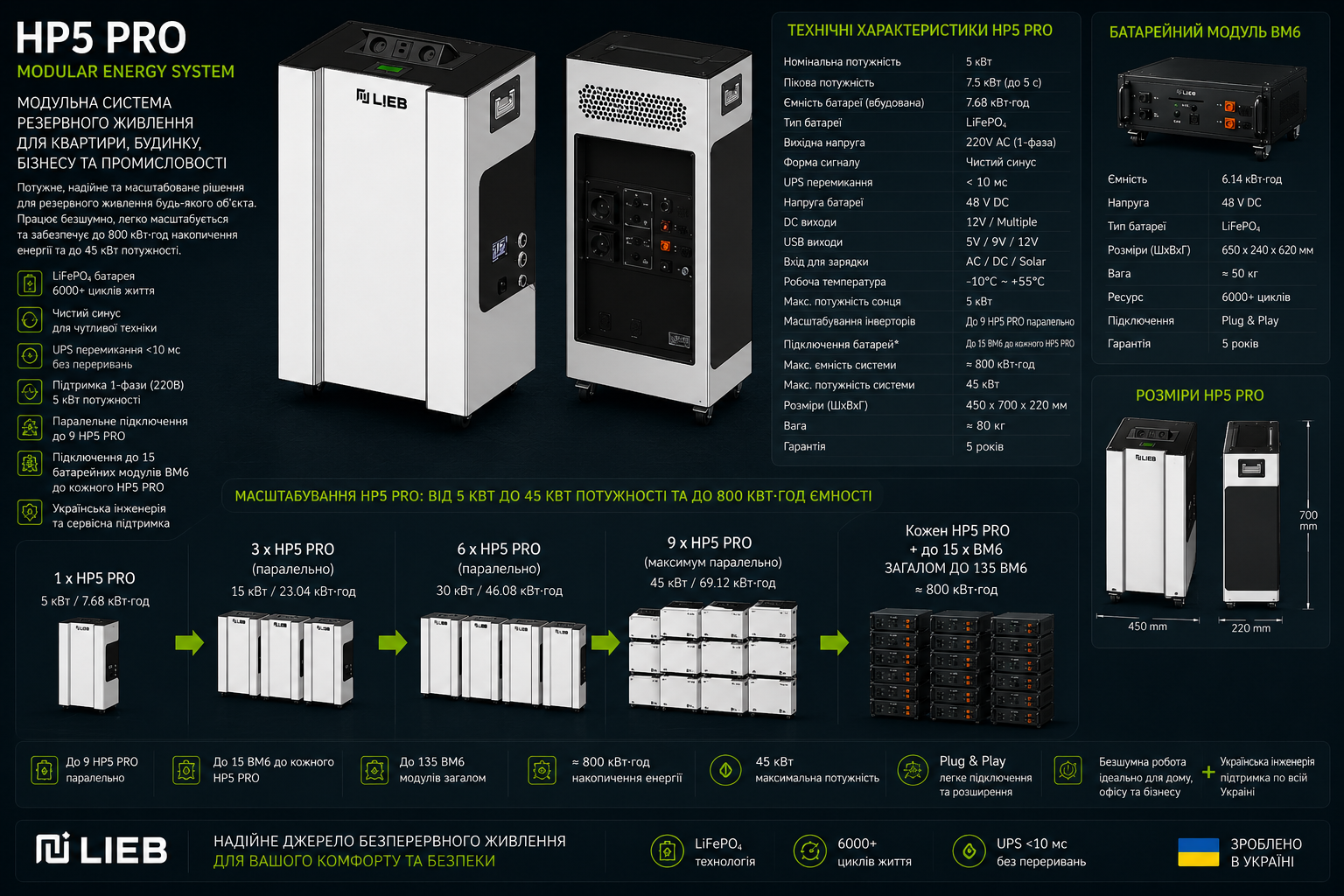

HP5 PRO

Cluster Energy System

Cluster platform for commercial and industrial sites. 5 kW / 7.17 kWh, clustering up to 9 units (45 kW), 3-phase 400V, MPPT, built-in EMS.

Price
From 185 000 UAH
In Stock

The listed price is an indicative starting price. Final pricing depends on configuration, equipment package and delivery terms.

Rated Power
5 kW
Peak Power
10 kW
Capacity
7.17 kWh
Max Capacity
645.12 kWh
Chemistry
LiFePO₄
Voltage
48 V
Request ConsultationGet Commercial Proposal
Certified System · Made in Ukraine · Tornado Power Group

Key Specifications

Rated Power
5 kW
Peak Power
10 kW
Capacity
7.17 kWh
Max Capacity
645.12 kWh
Chemistry
LiFePO₄
Voltage
48 V
UPS Mode
< 8 ms
Scalability
× 9 одиниць + BM6 × 15
Solar (MPPT)
MPPT < 1,5 год
EMS
Built-in
Communication
CAN / RS485 / Modbus
Warranty
24 mo.

System Overview

Cluster up to 9 units: 45 kW from one platform

3-Phase 400V: industrial three-phase power

Up to 645 kWh with BM6 modules

Built-in EMS: automatic source management

LiEB HP5 PRO overview

Scalability

1

Single unit: 5 kW / 7.17 kWh

2

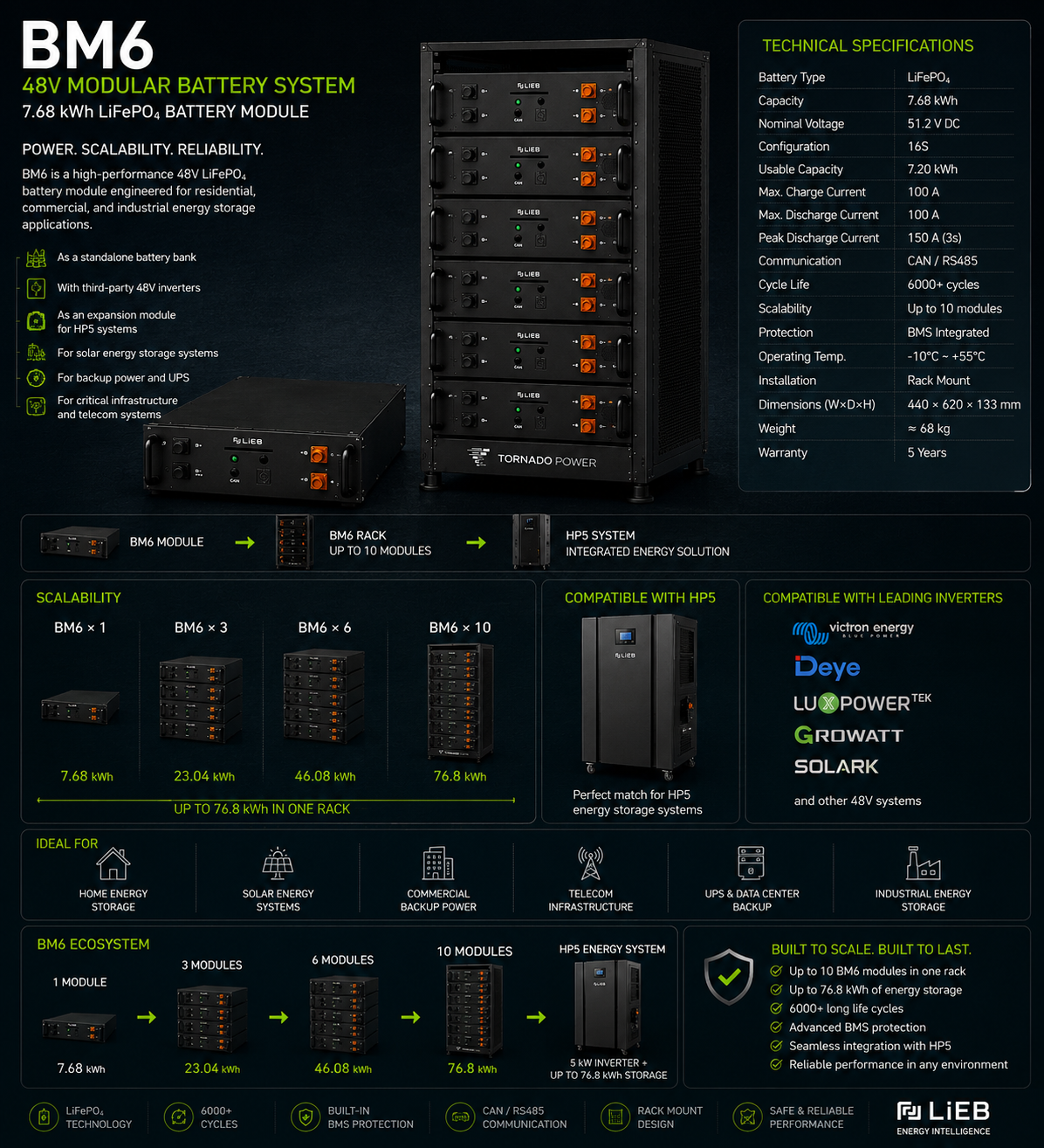

Add up to 15 BM6 modules per unit

3

Connect up to 9 units in parallel → 45 kW

4

Maximum system: 645.12 kWh / 45 kW / 3-Phase 400V

Scaling Architecture
Base Unit7.17 kWh
+ Modules× 9
Maximum645.12 kWh
Architecture remains unchanged

Compatible Modules

Applications

Commercial Sites
Industrial Yards
3-Phase Power
Scalable ESS
Peak Shaving
Telecom Infrastructure

Technical Specifications

SKU: LIEB-HP5PRO
Battery Capacity7 168 Вт·г (7,17 кВт·г)
Bus Voltage48 В / 48 V
Cell ChemistryLiFePO₄ (LFP)
Rated Power5 000 Вт / 5,000 W
Peak Power10 000 Вт / 10,000 W
UPS Switchover< 8 мс / < 8 ms
Parallel Stackingдо 9 одиниць / up to 9 units
Max Cluster Power45 000 Вт (45 кВт)
3-Phase (400 V)Так / Yes
Max BM6 Modules per Unit15
Max System Capacity645 120 Вт·г (645,12 кВт·г)
MPPT Solar Charge< 1,5 год / < 1.5 h
EMSВбудована / Built-in
CommunicationCAN / RS485 / Modbus
Warranty24 міс. / 24 mo.

Documentation

Datasheet
·
Solution Brochure
·
Full Specifications
·
LiEB Engineering Team

Need help choosing a configuration?

Our engineers will calculate the optimal configuration for your site, provide technical documentation and a commercial proposal.

Request ConsultationCalculate System Configuration
